Charmhigh SMT PCB Assembly Line with GKG-GSE Printer & 8-Zone Reflow

Charmhigh Small to Large Scale for PCB Assembly Lines for Electronics Manufacturing

Charmhigh SMT pick and place machine models

Charmhigh SMT pick and place machine, top Chinese brand. We have total of 9 models as below:

4 classic desktop models(2 heads):
CHM-T36VA, CHM-T36VB, CHM-T48VA, CHM-T48VB

2 advanced models(4 heads):
CHM-551 (50 feeders, auto nozzle change, auto PCB conveyor, Yamaha feeders,(xy)±0.05mm CPK≥1.0)
CHM-650 (50 feeders, auto nozzle change, auto PCB conveyor, Yamaha feeders, (xy)±0.05mm CPK≥1.0)

3 high-speed models:
TC06 (6 Heads, 50 feeders, auto change nozzle, NXT electric feeders, (xy)±0.035mm CPK≥1.0, 27800 CPH)
TM08 (8 Heads, 80 feeders, auto change nozzle, NXT electric feeders, (xy)±0.035mm CPK≥1.0, 35000 CPH)
TS10 (10 Heads, 100 feeders, auto change nozzle, NXT electric feeders, (xy)±0.035mm CPK≥1.0, 42000 CPH)

Charmhigh, your reliable manufacturer.

PCB Sample:

Charmhigh exhibition:

Customer feedback:

Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.

We provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech support:

Kimi Liu: Mob/ WhatsApp: +86 135 106 75756

E-mail: kimi@charmhigh-tech.com

Find us on YouTube: www.youtube.com/kimiLiuCharmhigh

If you want to know more information, please contact us by E-mail. We will response you at the first time.

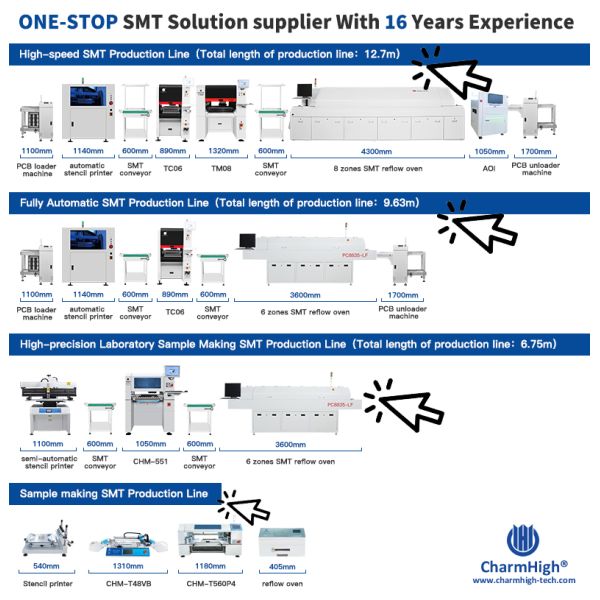

Charmhigh SMT assembly line with reflow oven

PCB assembly line with GKG printer

8-zone reflow SMT production line

Charmhigh SMT PCB Assembly Line with GKG-GSE Printer & 8-Zone Reflow Images
